MSL Series

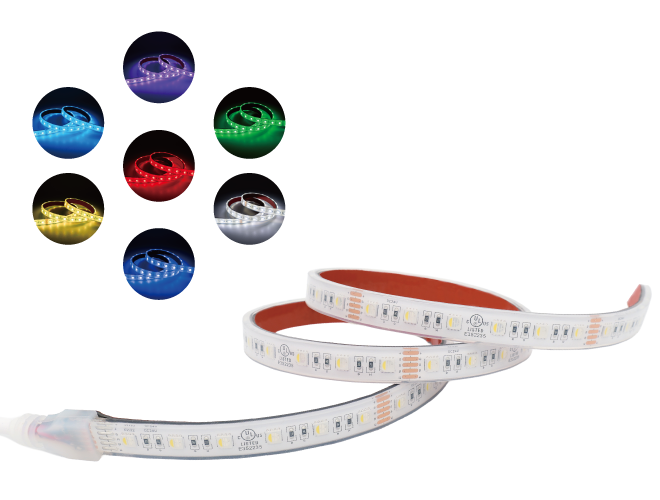

Industrial Multi-Color LED Strip Light
Multi-color:7 colors available (white, red, yellow, green, purple, blue, cyan).
Strong Protection: Both the main body of the product and the standard cable outlet end caps have an IP67 ingress protection rating.
Industrial Durability: Designed for industrial use, this product is built with corrosion-resistant materials and withstands vibration and extreme temperatures for long-lasting durability.
High Light Transmittance: With a light transmittance of up to 90%, this product meets the demand for high lumen output and delivers abundant brightness.
Flexible Installation: The lightweight and flexible design makes installation easier and more adaptable, allowing it to fit into tight spaces effortlessly. When used with an aluminum profile, it provides better shape retention.
Product Specifications
| Product | MSL□-02JSN-RGBC |
| Rated Voltage | DC 24V |
Operating voltage range | Rated Voltage ± 5% |
Rated power per meter | 16W/m |
Luminous color | Multi-color:7 colors：White,Red,Yellow,Blue,Green,Purple,Cyan [ White light = 6600K（6100-7400K）] |
Ambient Temperature | -30°C ~ +50°C |
Color Rendering Index | White Light：Ra > 80 |
Mounting Location | Indoor |
Protection Rating | IP67 |
| Conformity Standards | CE / UKCA / UL EMC Directive (EN 61000-6-4, EN 61000-6-2) / RoHS Directive |
Product Dimensions （mm）
MSL□-02JSN-RGBC
