MB10 Series

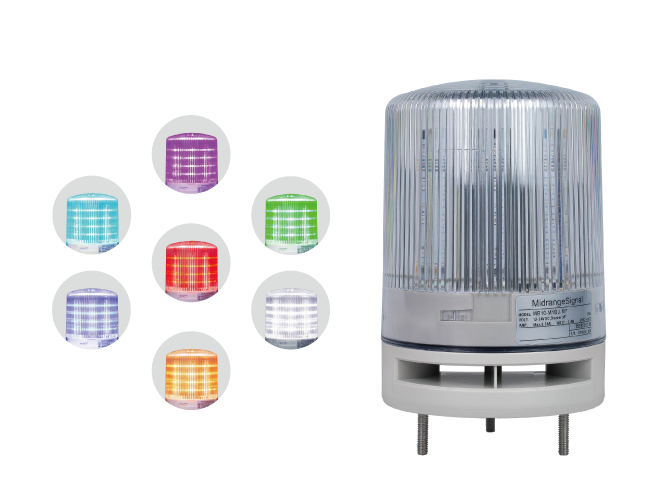

φ100mm Multi-color Signal Beacon
Multiple Lighting Modes Supported: Continuous on / Blinking / Rotating / Flashing
High-Intensity Audible Alarm: Delivers 98 dB output, with noise reduction mode providing up to 20 dB attenuation.
Rugged Design for Harsh Environments: Fully sealed against water and dust, achieving an IP65 protection rating.
Flexible Mounting: Compatible with a range of mounting bases to accommodate various installation configurations, meeting diverse industrial application needs.
Product Specifications
| Product | MB10-M1 Series | MB10-M2 Series |
Rated Voltage | DC 12-24V | AC 100-240V |
| Transistor Input | NPN/PNP | / |
| Luminous color | Multi-color:7-colors (transparent cover) | Multi-color:7-colors (transparent cover) |
| Light Pattern | Continuous On / Blinking / Rotating / Flashing | Continuous On / Blinking / Rotating / Flashing |
| Ambient Temperature/Humidity | Temperature -30℃~+60℃ Humidity Less than 90%（No Condensation） | Temperature -15℃~+60℃ Humidity Less than 90%（No Condensation） |
| Mounting Location | Indoor/Outdoor | Indoor/Outdoor |
| Protection Rating | IP65 (IEC 60529)(Direct Mounting only) | IP65 (IEC 60529)(Direct Mounting only) |
| Buzzer Sound | No.1 Continuous Beep No.2 Continuous Beep (Low Vol.) | No.1 Continuous Beep No.2 Continuous Beep (Low Vol.) |
| Sound Pressure(Typ.) | No.1 110dB No.2 90dB 0.3m Directly in Front | No.1 110dB No.2 90dB 0.3m Directly in Front |
| Conformity Standards | EMC Directive (EN 61000-6-4, EN 61000-6-2) RoHS Directive (IEC 62321) China-RoHS(GB/T26572-2011 SJ/T11364-2024) CE/UKCA/KC | EMC Directive (EN 61000-6-4, EN 61000-6-2) RoHS Directive (IEC 62321) CCC Directive(GB/T14048.5-2017) China-RoHS(GB/T26572-2011 SJ/T11364-2024) CE/UKCA/KC |
Product Dimensions（mm）
MB10-□□□J-□
Mounting Dimensions
