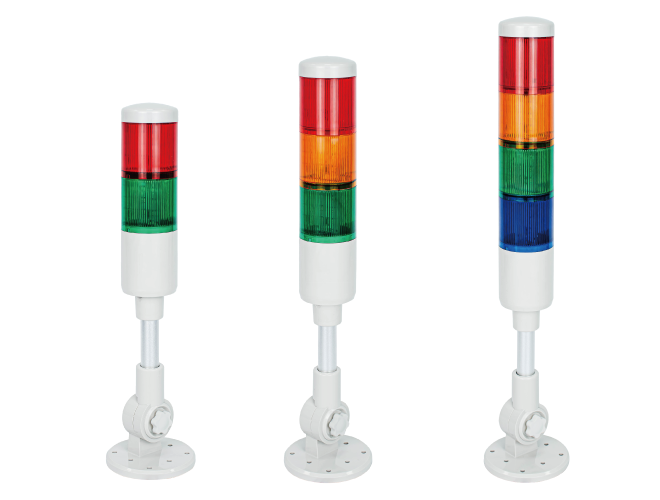

MT5I Series
Signal Tower
High-brightness visual warning: breakthrough brightness improvement ensures 360° clear visibility even in strong light or harsh environments.
High-volume audible warning: provides reliable sound alerts even when visibility is obstructed, with a sound level of up to 98 dB.
High protection: integrated audio-visual design with comprehensive waterproof and dustproof treatment, achieving IP65 protection rating.
Multiple Mounting Options:Designed to meet diverse industrial application requirements, supporting various mounting methods with optional pole lengths available.
Product Specifications
| Product | MT5I |
| Rated Voltage | 24V ± 10%DC |
| Transistor Input | NPN/PNP |
Signal Line Current(Single Module) Max | Red LED: 60.0mA Yellow LED: 60.0mA Green LED: 60.0mA Blue LED: 60.0mA Buzzer：60.0mA |
| Storage Ambient Temperature/Humidity | -30℃~+60℃ / Less than 90%（No Condensation） |
Mounting Location | Indoor/Outdoor |
| Protection Rating | IP65 (IEC 60529) |
| Buzzer Sound | No.1: Continuous Beep No.2: Rapid Intermittent Beep No.3: Continuous Beep (Low Vol.) |
| Sound Pressure Level（Typ.） | No.1 & 2: 98dB No.3：80dB |
| Environmental Conditions | 0.3m Directly in Front (Actual Test in Anechoic Chamber) |
| Conformity Standards | EMC Directive(EN 61000-6-4,EN 61000-6-2) RoHS Directive (lEC 62321)/China-RoHS(GB/T26572 SJ/T11364) CE Certified / UKCA Certified/ KC Certified |
Product Dimensions（mm）
MT51-2/3/402Q□J-□□□□□
Mounting Dimensions
