MT5I Series

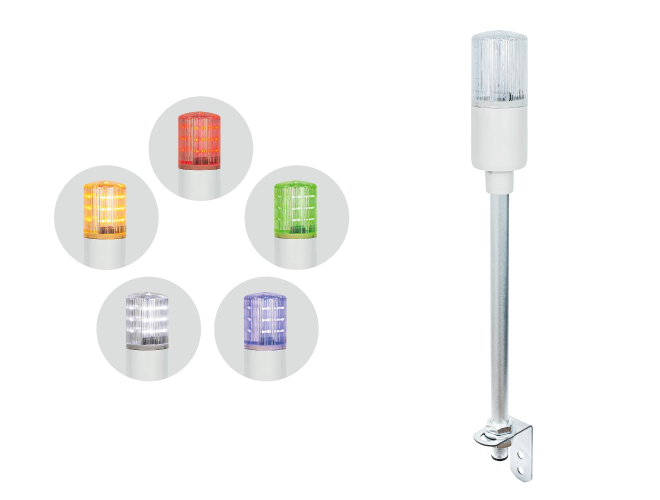

Signal Tower
High-brightness visual warning: breakthrough brightness improvement ensures 360° clear visibility even in strong light or harsh environments.
High-volume audible warning: provides reliable sound alerts even when visibility is obstructed, with a sound level of up to 98 dB.
High protection: integrated audio-visual design with comprehensive waterproof and dustproof treatment, achieving IP65 protection rating.
Multiple Mounting Options:Designed to meet diverse industrial application requirements, supporting various mounting methods with optional pole lengths available.
Specifications
| Product | MT5I |
| Rated Voltage | 24V ± 10% DC |
| Transistor | NPN/PNP |
Signal Line Current（Signal Unit） Max | White LED Unit: 60.0mA Buzzer Unit：60.0mA |
| Storage Ambient Temperature/Humidity | Temperature -30°C ~ +60°C Humidity Less than 90%（No Condensation） |
| Mounting Location | Indoor / Outdoor |
| Protection Rating | IP65 (IEC 60529) |
| Buzzer Sound | No.1: Continuous Beep No.2: Rapid Intermittent Beep No.3: Continuous Beep（Low Vol.） |
| Sound Pressure Level (Typ.) | No.1 & 2: 98dB No.3：80dB |
| Environmental Conditions | 0.3m Directly in Front（Actual Test in Anechoic Chamber） |
| Conformity Standards | EMC Directive(EN 61000-6-4,EN 61000-6-2) RoHS Directive (lEC 62321)/China-RoHS(GB/T26572 SJ/T11364) CE / UKCA / KC |
Product Dimensions（mm）
MT5I-102Q□J-RYGBC
安装尺寸
